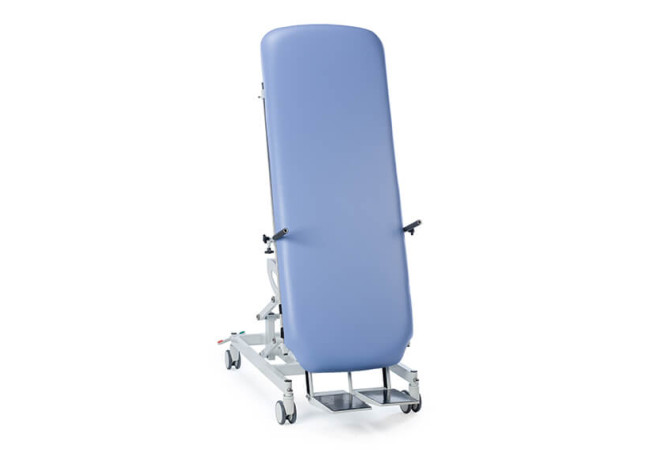

Tilt Table – 511 Plus Premier Variable Electric Height and Tilt

Product Features

• Electric Operation - Hand switch control of height and tilt angle
• Safe Working Load - 250kgs (550lbs or 39 stone)
• Battery Back-Up - To provide emergency power during mains supply failure
• Battery Level Indicator -The LEDs at the top of the handset display the power level
• Emergency Release -Enables manual lowering of the tilted table in event of mains/battery failure
• Footboard Adjustment -Angular adjustment of each footboard between +20° and -30°
• Patient Harnesses - Set of 3 ‘quick-release’ patient harnesses included as standard
• Patient Table - Adjustable angle Perspex table included as standard
• Patient Handgrips - Adjustable height (Removable) handgrips included as standard
• Height Range -58cm to 100cm (23” to 39”)
• Tilted Range -Horizontal to 90 degrees. Inclinometers fitted each side
• Wheel System -Large 125mm twin castors with central locking facility
• Hoist Access -Clearance beneath frame for mobile hoist – 13cm (5”)
• Upholstery -Deep pressure relieving design with antimicrobial vinyl
• Dimensions -Upholstery 186cm x 70cm (73” x 28”) Overall 200 x 85cm (L x W)
• Head Support Cushion -To help support the patients head and neck
• Warranty -5 Year warranty on mechanical and electrical parts. Lifetime on frame
