Plinth Medical Platinum Range 94G – Gynae Chair

Plinth Medical Platinum Range 94G - Gynae Chair

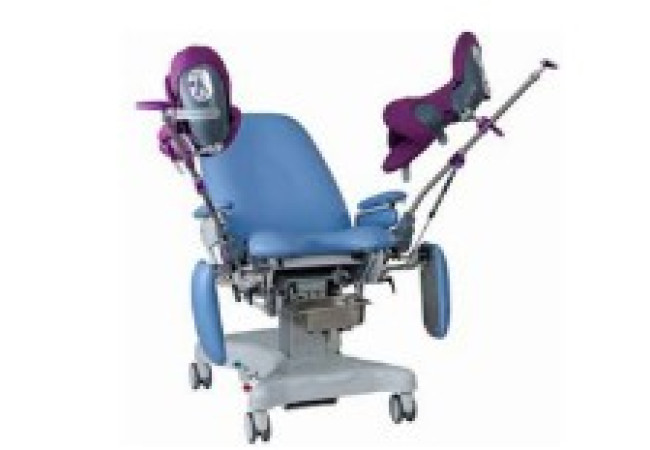

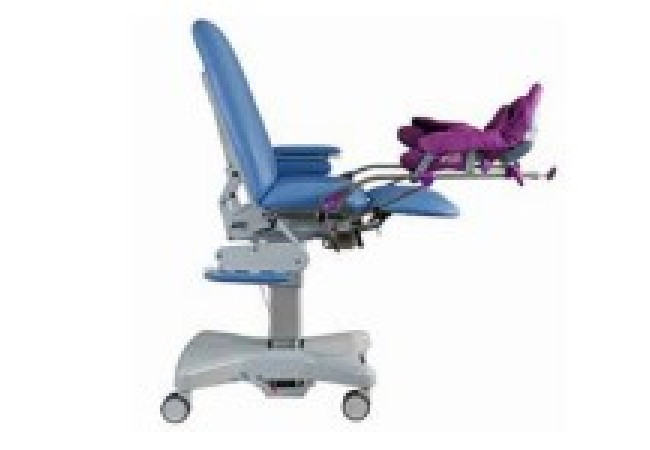

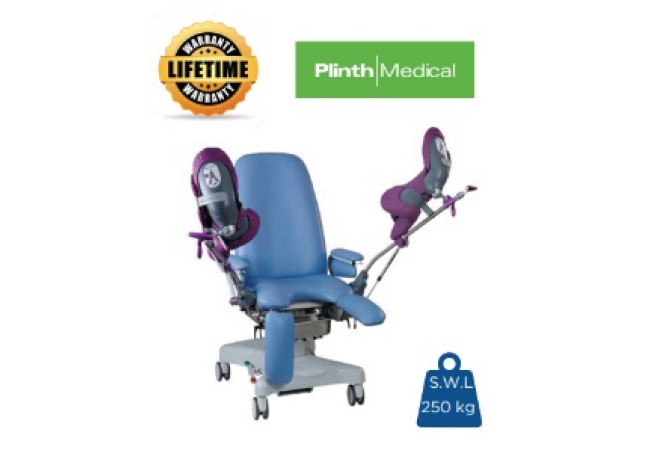

This new single column gynaecology chair has been designed to provide maximum features and benefits for gynaelogical and urodynamic procedures. The single column base requires minimal floor space, but still provides a full length top for patient recover or spine treatments. The chair is fitted with DIN Accessory Rails for the fixation and positioning of various types of leg supports or stirrups and has fold-back upholstered armrests. Electric operation provides height, backrest and foot angle adjustment as well as pelvic tilt for patient positioning.

KEY BENEFITS

• Lifetime frame and 5 year parts guarantee for peace of mind
• All electric operation for ease of use
• Electric pelvic tilt of -20º for optimum patient positioning
• Unique divided leg section for patient recovery and supine treatment procedures
• Battery backup facility allows chair to be lowered in the event of mains power failure
• 125mm centrally-locking castors with steering facility for ease of manoeuvrability
• Contoured pressure-relieving upholstery for additional patient comfort
• Single column vertical lift minimises space requirements
• Time saving electric CPR, recovery and Return-to-Zero
• Easy to clean protective base shroud

DIMENSIONS

Length: 111-179cm (57-68") approx

Width: 63cm (25") approx

Height: 55-95cm (24-40") approx

TECHNICAL STANDARDS

• Safe Working Load & Lifting Capacity tested in accordance with the rating on all models
• MD Classification (Class 1) EU MDR 2017/745 Annex VIII Class 1/UK MDR 2002 (SI 2002 No 618, as amended)
• Electrical Standard – IEC 60601-1
• IP Rating IPX6/IPX4 depending on options selected
• Vinyl flame retardant to CRIB 5 (BS 5852 / BS7176)
• Foam flame retardant to BS 5852: Part 2: 1982, Ignition Source 5 (CRIB 5)
• UKCA and CE Marked Medical Device
• Plinth Medical Ltd is externally audited by LRQA to ISO 9001:2015
