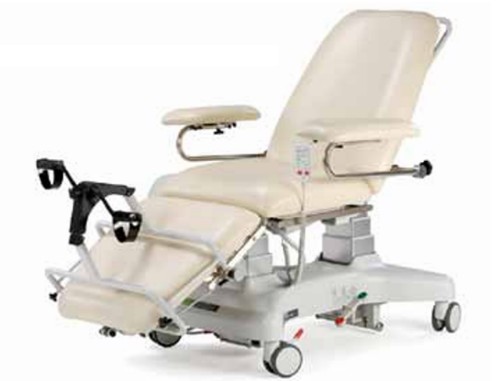

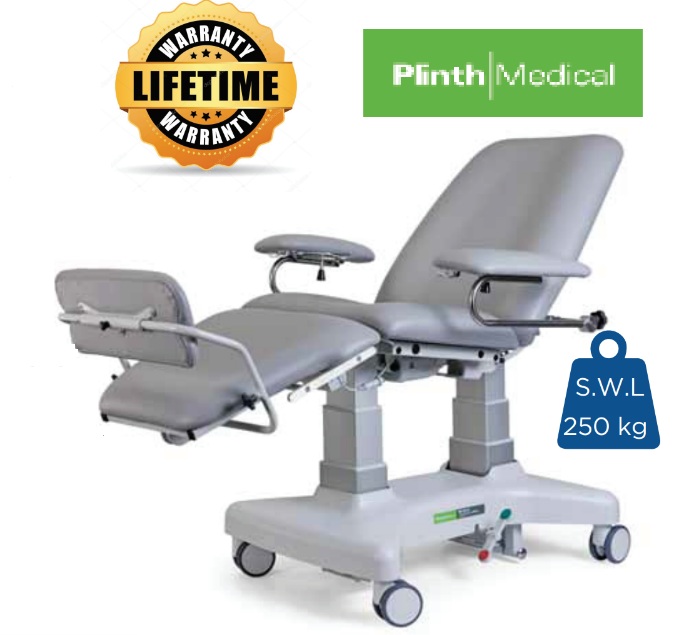

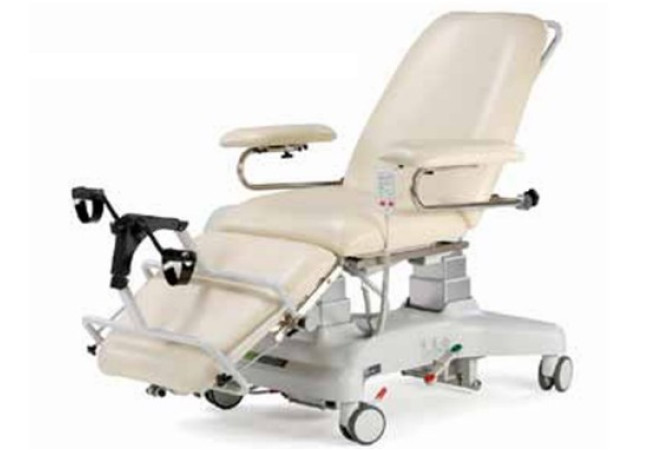

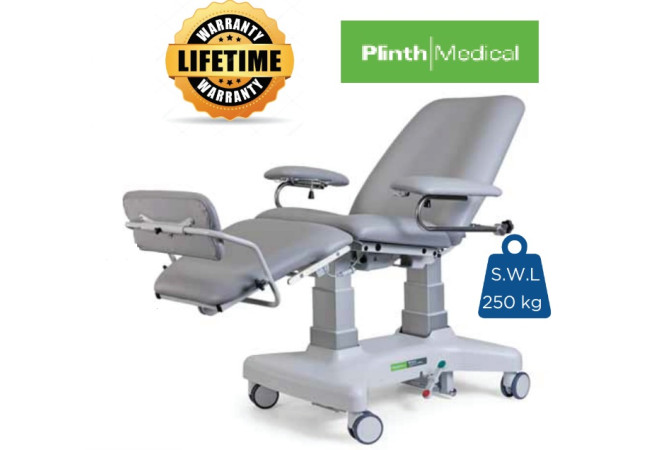

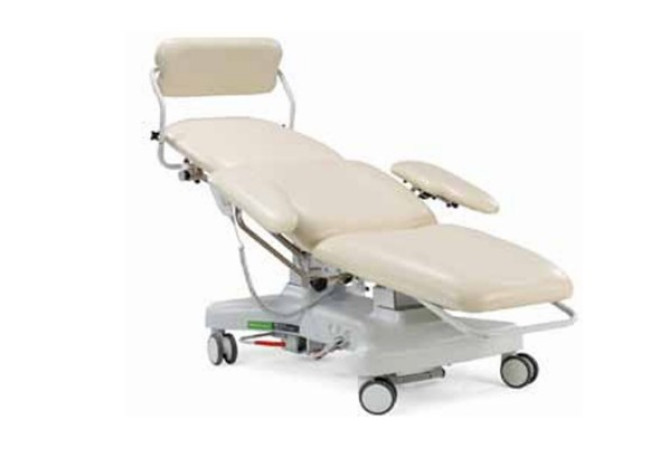

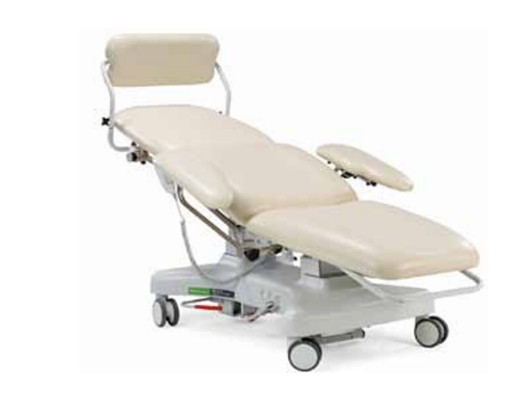

Plinth Medical Platinum Range 94DYW – Mobile Bariatric Dialysis Chair

Plinth Medical Platinum Range 94DYW - Mobile Bariatric Dialysis Chair

Developed specifically for busy renal units, this dual column couch provides vertical lifting to minimise space requirements and features simple electric handswitch operation of all movement parameters. These features include electric profiling of height, backrest and foot section angles, foot support board position, Trendelenburg tilt, auto CPR, recovery position and Return-to-Zero (RTZ) position. These benefits provide ideal solutions for handling high-risk patients for procedures such as dialysis, periton dialysis, plasmapheresis, oncology and chemotherapy.

KEY BENEFITS

• Electric operation of all chair positions for height, backrest, leg section, foot support and Trendelenburg tilt to -20°
• Electric push button CPR and foot operated manual CPR operation
• Battery back-up to provide functional operation during mains power failure
• Padded armrests with auto-adjustment to seated and semi-seated positions
• Matching head support cushion and knee bolster for additional comfort and support
• Large 125mm twin castors with central locking and steering facility
• Low patient transfer height of 52cm

DIMENSIONS

Length: 222cm (87") approx

Width: 102cm (28") approx

Height: 53-93cm (21-37") approx

TECHNICAL STANDARDS

• Safe Working Load & Lifting Capacity tested in accordance with the rating on all models
• MD Classification (Class 1) EU MDR 2017/745 Annex VIII Class 1 / UK MDR 2002 (SI 2002 No 618, as amended)
• Electrical Standard – IEC 60601-1
• IP Rating IPX6/IPX4 depending on options selected
• Vinyl flame retardant to CRIB 5 (BS 5852 / BS7176)
• Foam flame retardant to BS 5852: Part 2: 1982, Ignition Source 5 (CRIB 5)
• UKCA and CE Marked Medical Device
