Plinth Medical Platinum Range 94C-Arm – Gynae Chair

Plinth Medical Platinum Range 94C-Arm - Gynae Chair

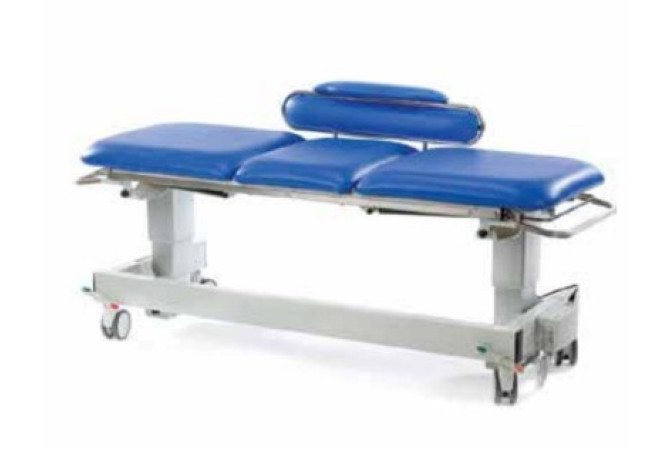

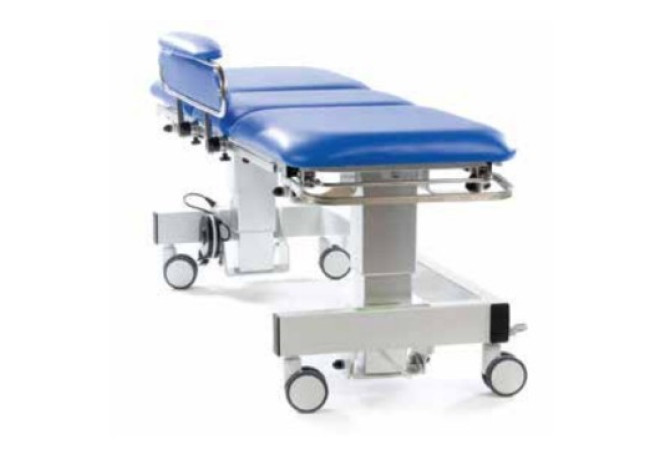

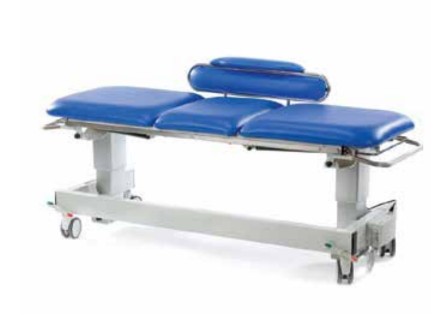

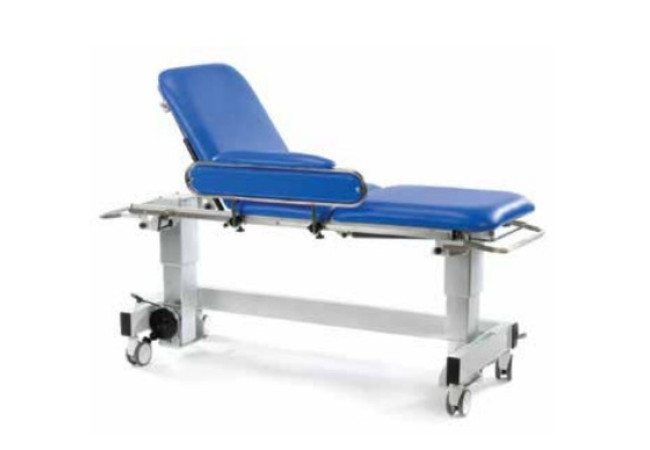

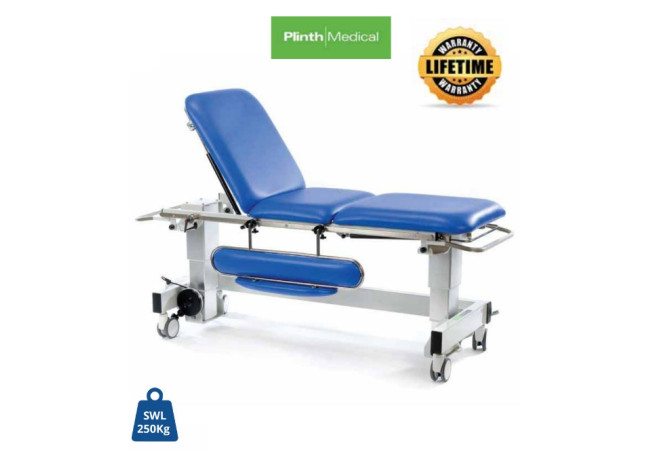

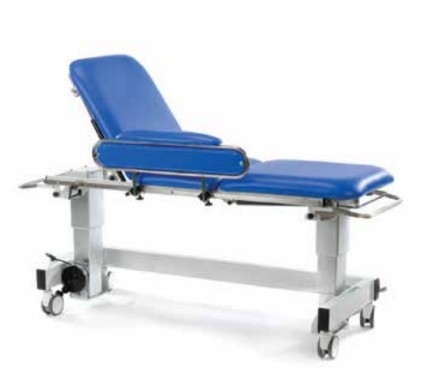

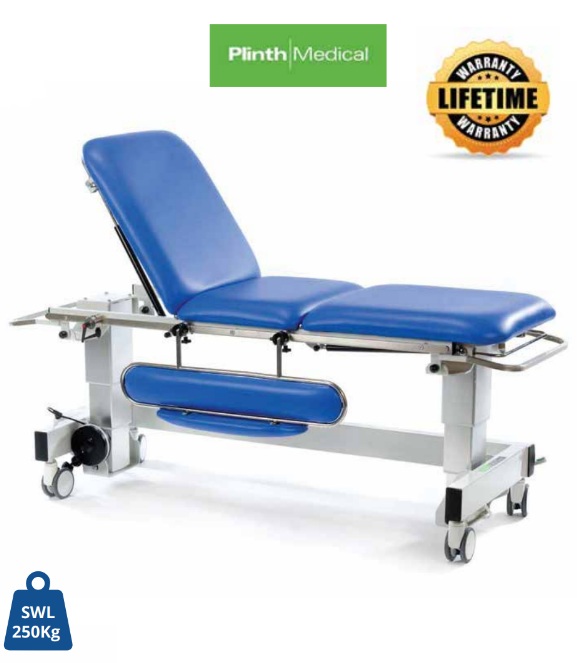

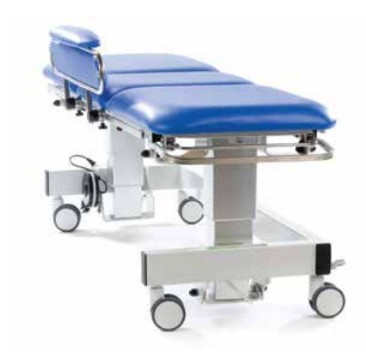

This specialist imaging table has been designed for use with a C-Arm fluoroscopy device used to visualize a patient’s anatomy during surgery and diagnosis. The C-Arm Imaging Table provides the facility to position the patient between the upper and lower lenses of the C-Arm equipment for various imaging procedures. A fold-down padded side support is fitted on one side of the table for patient security.

KEY FEATURES

Dual Column Lift: Vertical lifting to minimize space requirements

Electric Operation: Electric height operation, 2-way tilt to +/- 5 degrees

Safe Working Load: 250kgs (550lbs or 39 stone)

Height Range: 50-90cm (20” to 35” approx.)

Backrest Angle: Manual gas strut adjustment from horizontal to 90 degrees

Foot Section Angle: Manual gas strut adjustment from horizontal to 90 degrees

Wheel System: Central locking with steering facility

Frame Access: Access between lifting columns 140cm

Height Access: Access below top frame to floor 79cm at minimum height

Battery Back-up: Providing emergency power during mains failure

Mains Power Cable: Fitted with retractable storage device for transport

Padded Cot Side: Fold-down side support 94cm x 20cm (L x H)

Hoist Clearance: Clearance beneath frame for mobile hoist – 17cm (7”)

Upholstery: Deep contoured pressure-relieving design with Multistretch antimicrobial vinyl

Upholstery Dimensions: Upholstery size 190 X 70cm (74” x 28”) L x W

Warranty: Lifetime frame and 5 year parts guarantee
