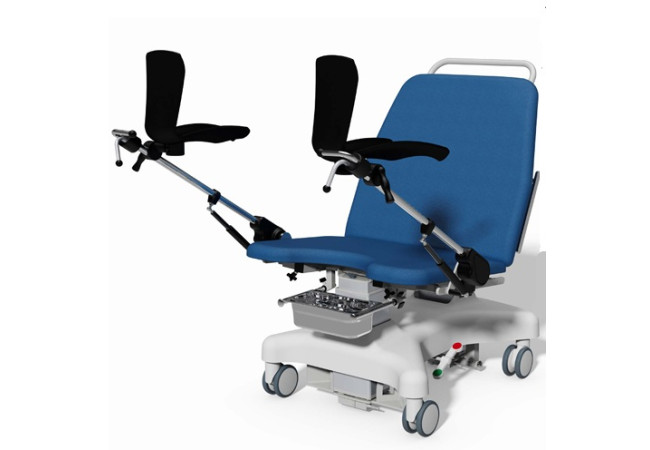

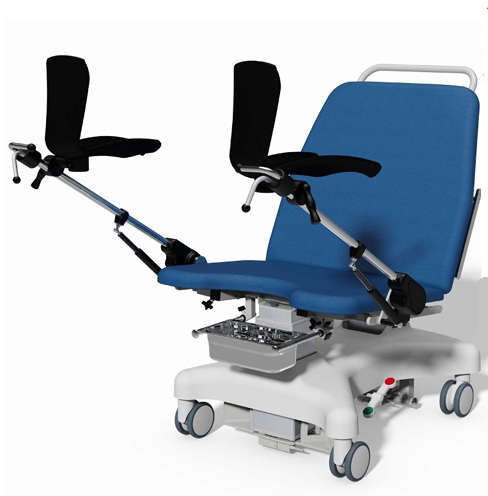

Plinth Medical Platinum Range – 51G Bariatric Gynae Couch

Plinth Medical Platinum Range - 51G Bariatric Gynae Couch

New model with twin column lift, allowing greater strength and optimum positioning of bariatric patients for a variety of gynaecological and colposcopy procedures. The reverse Trendelenburg
feature greatly aids patients in accessing the chair whilst full electrical operation of height, backrest and Trendelenburg tilt increase patient comfort, positioning and clinical access. Supplied
as standard with powered stirrups, removable arm supports, head cushion and stainless steel tray.

KEY FEATURES

• Lifetime frame & 5 year parts guarantee

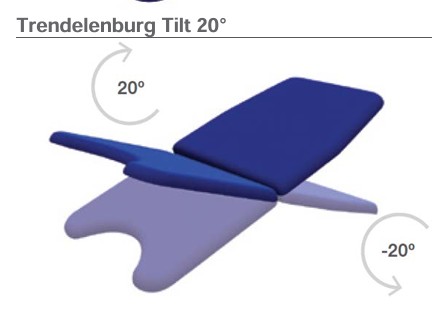

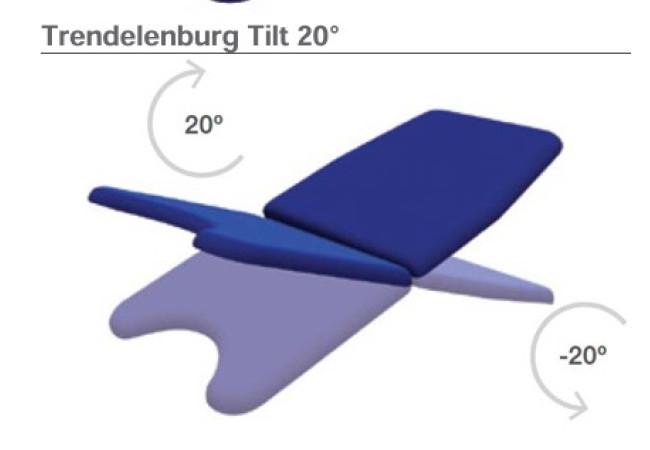

• Electric operation of height, backrest and 2 way tilt to +/- 20°
• Seat section with cut-out area and option of extension for patient positioning and recovery

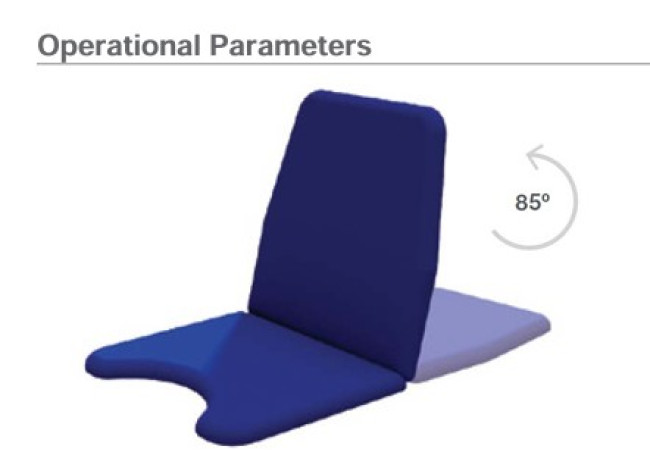

• Motorised backrest for supporting the patient in various seated positions
• Safe working load of 320kgs (704lb / 50 stone)
• Large 125mm twin castors with central locking and steering facility
• Supplied with powered stirrups to assist patient positioning
• Battery backup included incase of mains power failure
• Low patient transfer height of 54cm (21”)
• Wide choice of options and accessories to meet user requirements

DIMENSIONS

Length: 143cm (56") approx

Width: 78cm (31") approx

Height: 54-94cm (21-37") approx

Technical Standards

• IP Rating – IPx4
• EEC Classification – MDD93/42/EEC Annex IX Class 1
• Electrical Standard – IEC601 Part 1 + 60601 P (EN)
• Vinyl Flame Retardant to CRIB 5 (BS 7176)
• Foam to BS 5852: Part 2: 1982, Ignition Source 5 [CRIB 5]
• CE Marked
• Externally audited to ISO9001:2015 by LRQA
